Simulation steel beam reinforced concrete under compression load in Abaqus

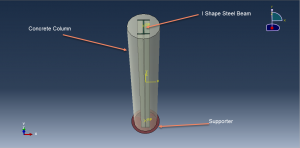

In this tutorial simulation steel beam reinforced concrete under compression load in Abaqus has been studied.The beam and concrete are modeled as three dimensional part and you can see the assembled part at below

The steel beam material is modeled as elastic,plastic and ductile damage behavior and for concrete concrete damage plasticity is used. Tow rigid body are created as hydraulic and supporter. In this simulation both stat and dynamic analysis can be used, but dynamic explicit procedure is so better to avoid unconvergece and reduce the time .The general contact algorithm for all parts has been used and the contact between steel beam and concrete is assumed perfect contact. The boundary conditions are assigned to the top and bottom rigid surface and displacement control to observe the maximum capacity is used.The model needs a proper mesh to achieve the best result.

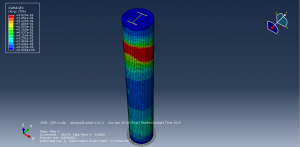

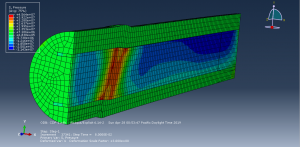

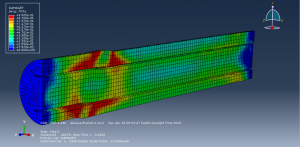

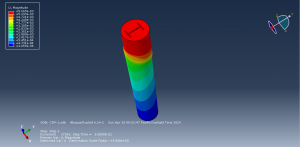

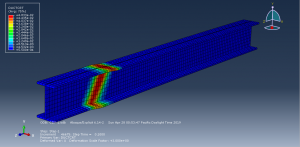

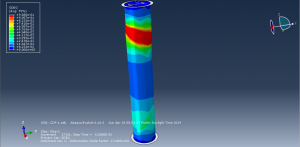

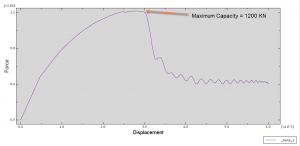

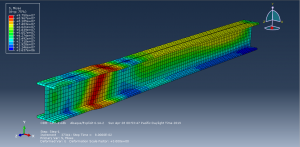

After the simulation beam and concrete damage such as ductile,tensile and compressive damage can be obtained from the results. The reaction force displacement diagram for this analysis shows the maximum bearing of the assembled part. You can see some results of this simulation at below

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty Nine US Dollars. you can click on the bellow bottom to beginning process

This is an important point when you want to select the payment port, select ROD PAY(this is a payment port for foreign buyers) and you can pay just with Bitcoins

If you haven’t Bitcoins You can pay it with PayPal or Master card just send me an email to this address:karampourp@gmail.com
