Simulation Eulerian explosion in the Lagrangian pipe in Abaqus

This file contain CAE and full English video of Eulerian explosion in the Lagrangian pipe in ABAQUS step by step.An explosive detonated in water is a rapid chemical reaction in a substance, which instantly converts the original material into hot explosion gas with a temperature of approximately 3000C and induces a shock pressure of up to 5000 MPa transmitted to the surrounding water and propagating away from the source. In underwater explosion, the peak overpres-sure is of several orders of magnitude greater than the hydrostatic pressure. Therefore, the hydrostatic pressure is ignored and the peak overpressure is simply called as peak pressure. The pressure history of the shock wave at a given point starts with an instantaneous pressure increase to a peak pressure, followed by a decaying exponential function

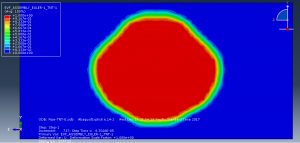

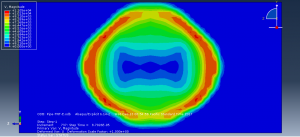

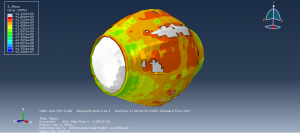

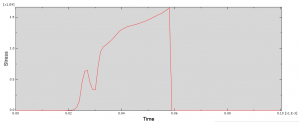

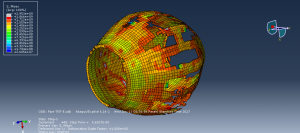

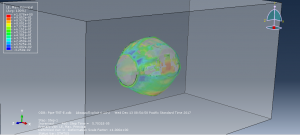

TNT and Air has modeled as a eulerian parts and pipe as a lagrangian part. for modeling TNT behavior JWL equation of state and for the air Us-Up has been used. For predicting damage in the pipe appropriate model has been used. During the analysis pipe failed and TNT pressure destroyed the pipe wall.You can see some picture of this analysis bellow



You can provide CAE ,INP,and English video files of this simulation here. The cost of these files are Thirty Dollars. you can click on the bellow bottom to beginning process

This is a important point when you want to select the payment port,select ROD PAY(this is a payment port for foreign buyers) and you can pay just with Bitcoins

If you haven’t Bitcoins You can pay it with PayPal or Master card just send me an email to this address:karampourp@gmail.com
