Prediction model of depth of penetration for alumina ceramics under garnet impact in Abaqus

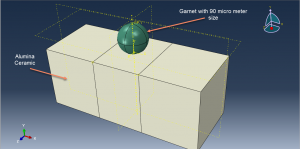

In this tutorial Prediction model of depth of penetration for alumina ceramics under garnet impact in Abaqus has been studied .The target and projectile were modeled as three dimensional parts .The JH-2 constitutive model was proposed to describe the response of ceramic materials to large strain rate. The JH-2 constitutive model requires several material constants to completely describe the response of a particular ceramic material.The dimensions of the target were 1000×۴۰۰×۴۰۰μm3 . The boundary conditions for the target were defined as follows: Nodes impacted by a particle on the top face of the target were set free, while nodes on all the other five exterior faces of the target were fixed. A more refined mesh was used in the vicinity of the impact on the target, while a relatively coarse mesh was applied away from the impact area. The abrasive particle was modeled as a sphere using rigid 3D solid (tetrahedral) elements.You can see a figure of the assembled part at belo

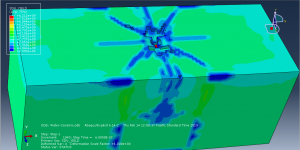

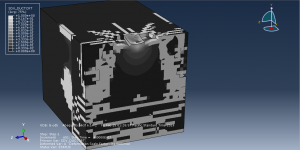

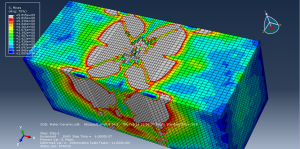

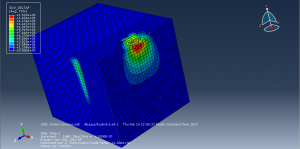

Dynamic explicit procedure is appropriate for this type of analysis. The initial velocity as 700 meter per second assign to the garnet. After the impact the damage variable is obvious and garnet penetrated into the target and you can see some figures of this simulation at below

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Six Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
