Simulation Friction Stir Welding of Steel-Aluminium Plate in Abaqus

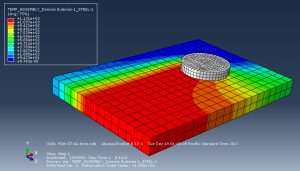

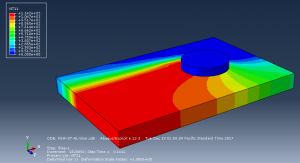

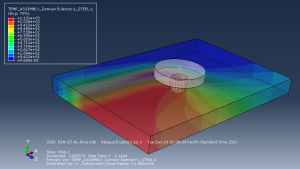

This file contains CAE and full English video to explain Friction Stir Welding process step by step. in this file we used the Eulerian element for   Steel and Aliminium plates and Lagrangian element for tool. During the analysis you can see the temperature distribution in two pieces.You can see some picture of this process below. By moving and rotating tool temperature changed during the analysis and in the Aluminium plate is more than the Steel plate because of the differences between thermal property

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Six Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
