Simulation explosion loading using Conwep procedure over Concrete slab in Abaqus

This is a full  English video demonstrates the usage of CONWEP blast loading using Abaqus/Explicit over the Concrete slab.Concrete was modeled by Concrete Damage Plasticity .By using CDP material model tensile and compressive damage can be investigated. Dynamic explicit step was used.

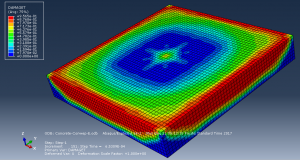

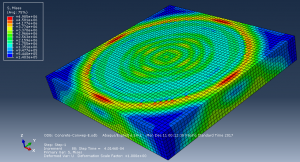

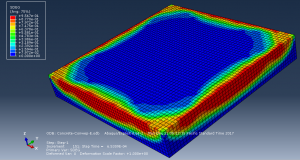

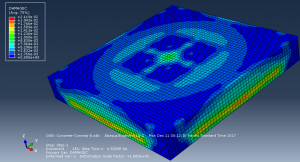

Air Blast method was used for the simulation. During the analysis TNT waves pressure causes Compressive  and Tensile damage in concrete slab and make degradation in it. After the simulation blast wave causes a huge damage on the cocrete slab.In the bellow picture you can see some results of this simulation

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
