Simulation Eulerian Explosion in the Water near Concrete Dam in Abaqus

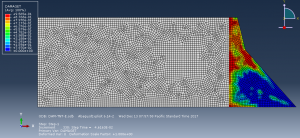

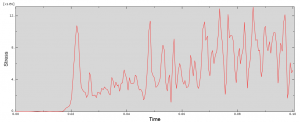

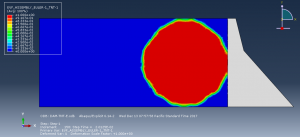

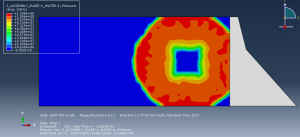

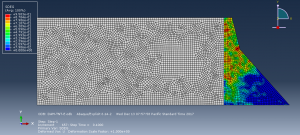

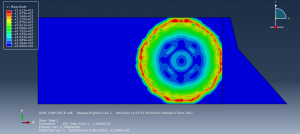

This is English video of simulation Eulerian Explosion in the water near concrete dam in Abaqus.  TNT and Water has modeled as Eulerian parts and concrete dam with Lagrangian method. Form modeling TNT behavior JWL equation of stat and for water Us-Up equation has been implanted. For concrete CDP (concrete damadge plasticity) has been used to predict fracture zone. CDP model has this capability to provide tensile and compressive damage. Dynamic explicit procedure is appropriate for this type of analysis. General contact algorithm is used to define contact between dam and water. The mesh quality has a huge effect over the results accuracy.  I n the bellow pictures you can see the results of simulation

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Six Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
