Simulation composite three points bending in Abaqus

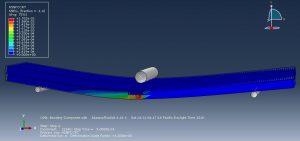

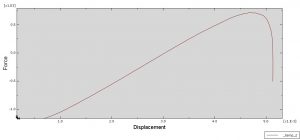

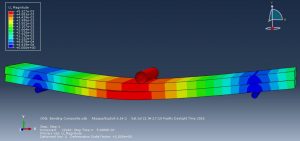

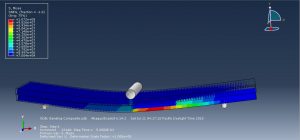

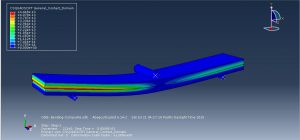

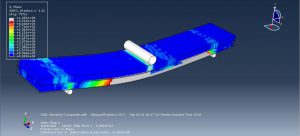

In this tutorial simulation composite three points bending in Abaqus has been done. Composite parts are modeled as three dimensional part with continuum shell element . Epoxy-Glass material with Hashin’s damage criterion to model composite behavior under bending load has been implanted.This simulation normally is done by static solver but in this analysis because of the unconvergence and overcome the long time of simulation, dynamic explicit procedure with smooth step amplitude has been used. To model cohesive behavior between two composite layers,interaction property as cohesive,damage and tangential behavior has been used.You can see some figures of this simulation at below

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Two Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
