Simulation bullet impact to the concrete wall with Johnson-Cook material

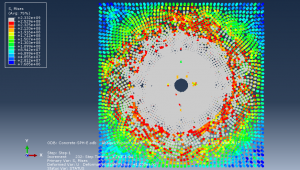

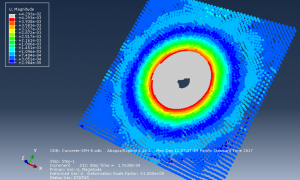

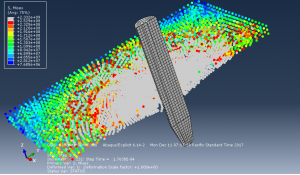

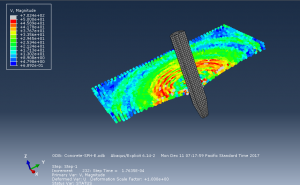

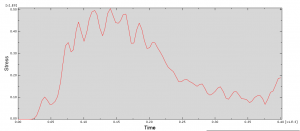

This video explains high velocity impact of a bullet to the concrete wall step by step.Bullet is modeled as a 3 dimensional part with rigid property and concrete as a 3 dimensional part with Johnson-Cook plasticity and damage for predicting fracture area that happened during the analysis.Johnson-Cook  material has better performance than the concrete damage plasticity when the compressive behavior is more important and this method is better for showing failure in element.In the bellow pictures you can see some results of this simulation

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty Six Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
