Simulation air blast explosion inside reinforcement concrete room in Abaqus

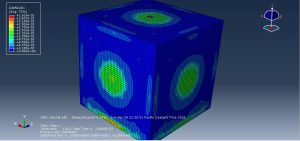

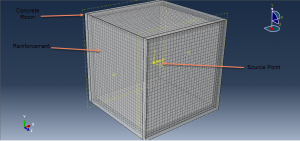

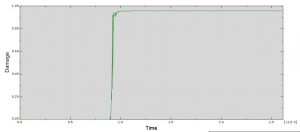

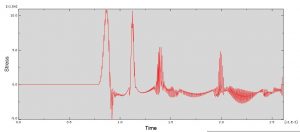

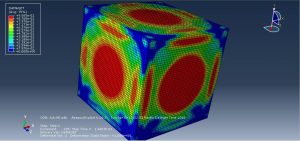

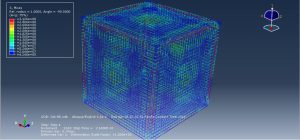

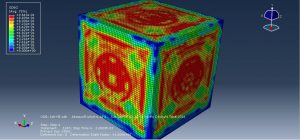

In this tutorial air blast explosion inside reinforcement concrete room in Abaqus has been investigated. The concrete room is modeled as three dimensional part with CDP material to predict compressive  and tensile damage. Reinforcement is used as beam part by wire element ans steel material. Dynamic explicit procedure is appropriate for this type of analysis  and air blast phenomenon is modeled by CONWEP model. During the analysis concrete room and beam are sensed a huge amount of pressure and the damage happened in the room as tensile and compressive damage. You can see some figures of this simulation at below

You can provide CAE ,INP,and English video files of this simulation here. The cost of these files is Twenty-Two Euros. you can click on the bellow bottom to beginning process

You can purchase the tutorial through a PayPal account, a Visa, or a Master card,  just before payment,send me an email to this address: karampourp@gmail.com
